All about Sandblasting Nozzles Vs Air Requirements

Take a deep breath...

Once you've identified the type of nozzle you need, before you go any further, you need to understand  a little bit more about your air compressor. If we had a pound for everytime someone told us that they had a 'big' air compressor, we'd retire early.

Unfortunately, the physical size of the compressor may not bear any realtionship to the size of nozzle it can 'drive'. When we say 'size', we mean the hole or bore size of the nozzle of course...The action bit, where all the grit and air passes through...

It's all about CFM Vs Blasting Pressure. You're compressor will have a CFM rating; how much free air it can deliver.

There is a quick rule-of-thumb, you can use as a guide to determine your CFM (Free AIr Delivery Cubic Feet Per Minute)

For a piston compressor multiply the horse power by 3 and by 4 for a vane compressor..

More information on CFM etc., the bottom of the page...

Our selection of sandblast Nozzles types...

We supply a wide range of nozzles found in the UK Memorial Trade...Click on the images for more information or via the 'Learn More' link...

More information regarding air requirements on page below.

Bore Sizes
2-6mm

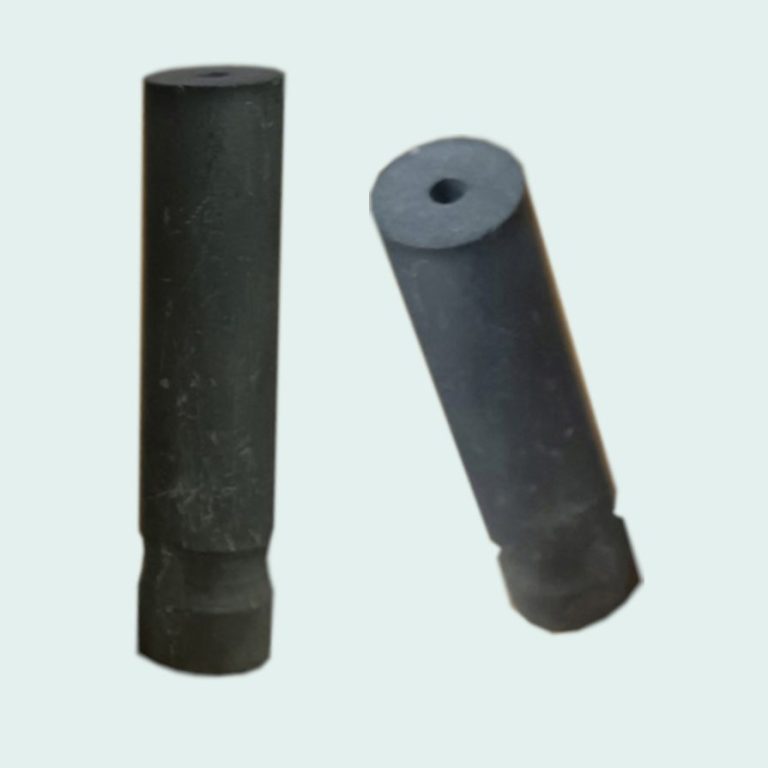

Pistol/Sleeve Nozzle

Our most basic Tungsten Carbide nozzle...

Bore Sizes
2-2.5mm

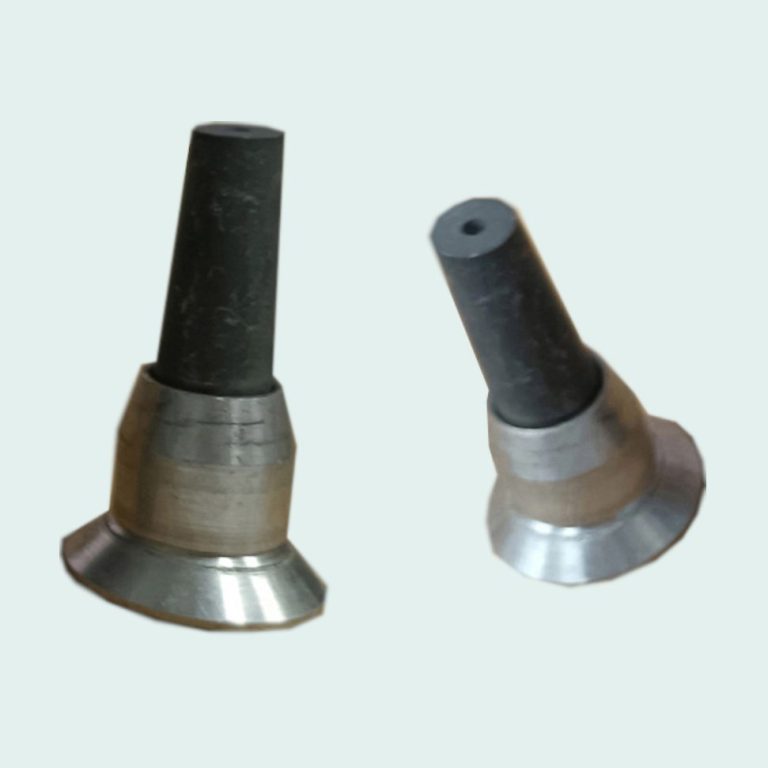

The Blast Shop - Standard Tungsten

Our most popular nozzles - Fit in our Blast Shop Nozzle holders...The smaller bore sizes are only partly encased in alumiunium.

Bore Sizes
3-6mm

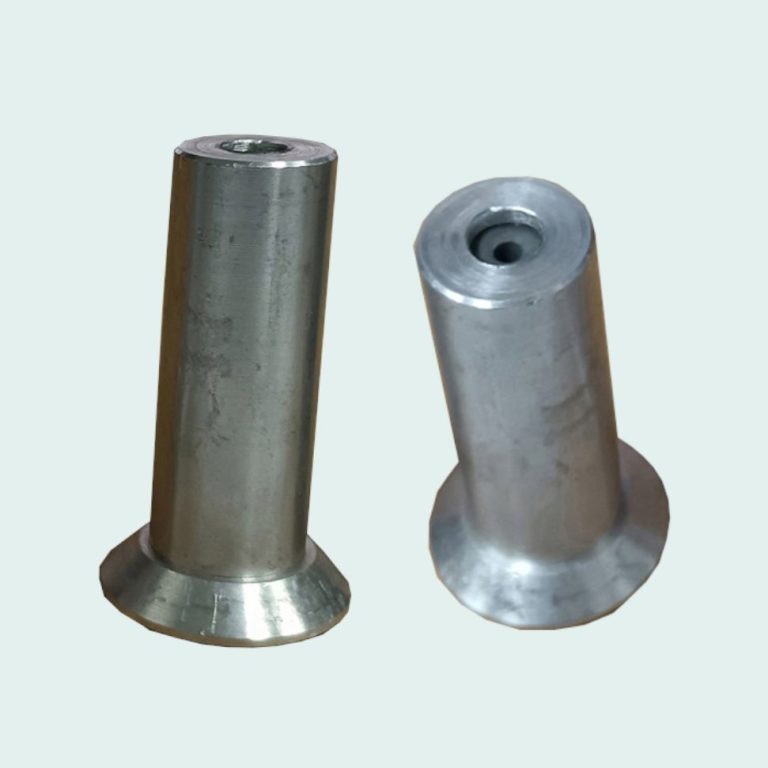

The Blast Shop - Standard Tungsten

Our most popular nozzles - Fit in our Blast Shop Nozzle holders...The larger bore sizes are fully encased in alumiunium.

Our selection of sandblast Nozzles types...

We supply a wide range of nozzles found in the UK Memorial Trade...Click on the images for more information or via the 'Learn More' link...

More information regarding air requirements on page below.

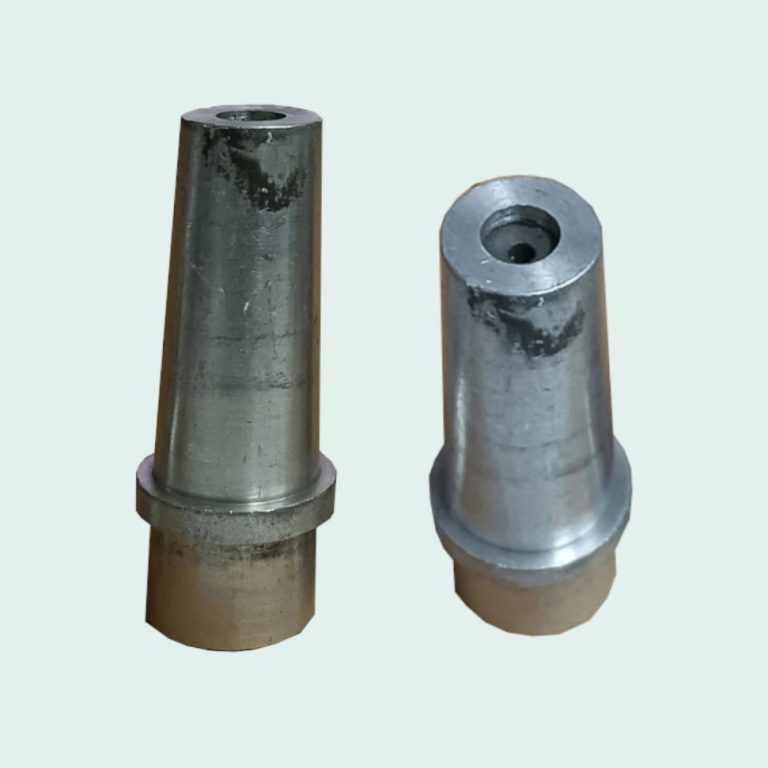

Odling's 'S' Style

Conicle shaped with a ringed flange.

Bore Sizes
2-6mm

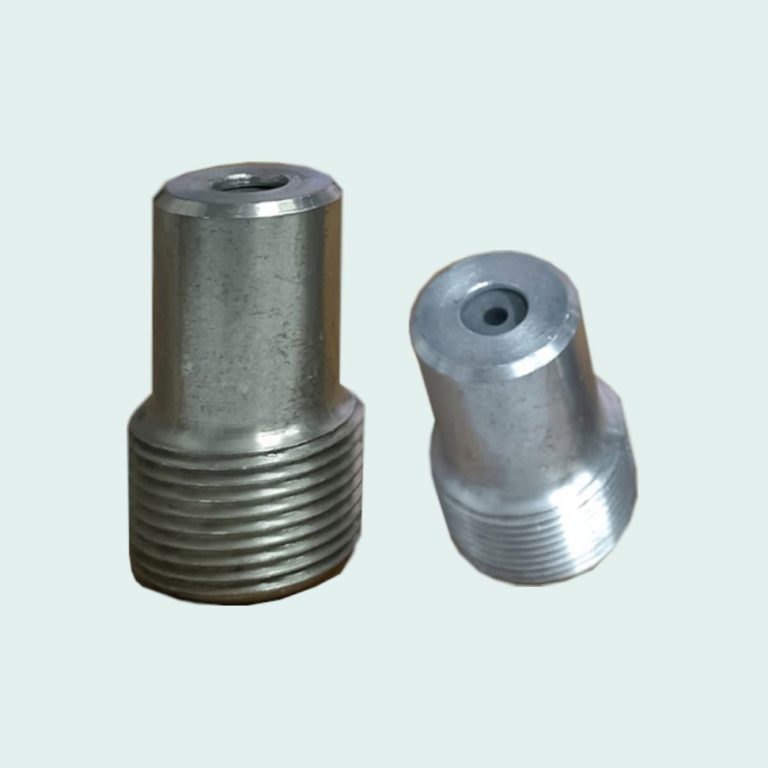

Hodge Clemco Fine

Fine Threaded Clemco Nozzle...

Bore Sizes
3-6mm

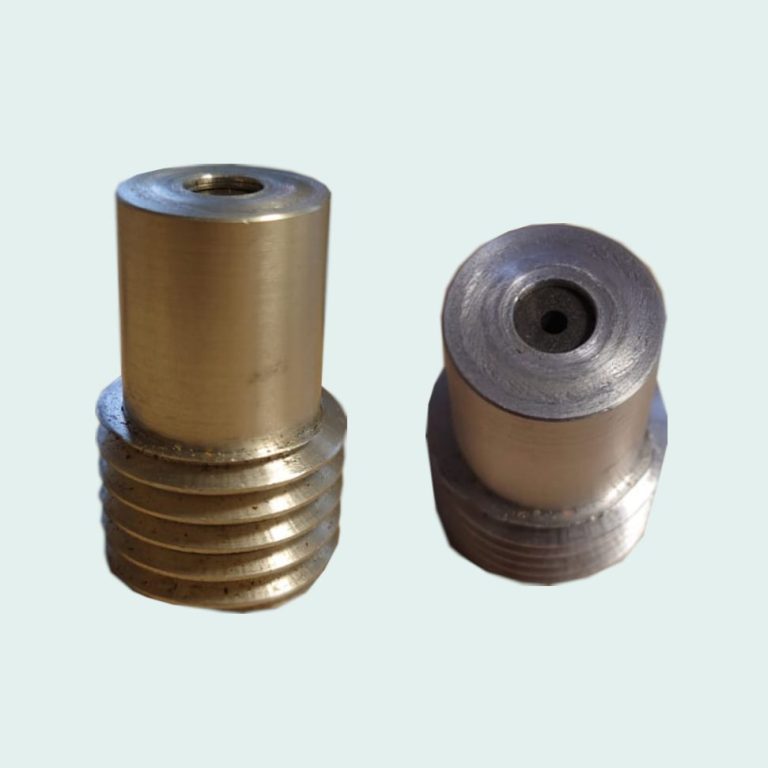

Hodge Clemco Coarse

Coarse Threaded Clemco Nozzle...

Bore Sizes
3-6mm

Air Requirements Cont...

Obvious things first - what kind of sandblasting are you using the nozzle for? If it's for lettering, then use a larger bore nozzle as possible, bearing in mind you still need to be blasting at a reasonable pressure. For design work, a smaller bore nozzle may be better, however, for Photostencils, you can benefit again from a wider bore size to get a wider spread of fine grit - Minefield isn't it...

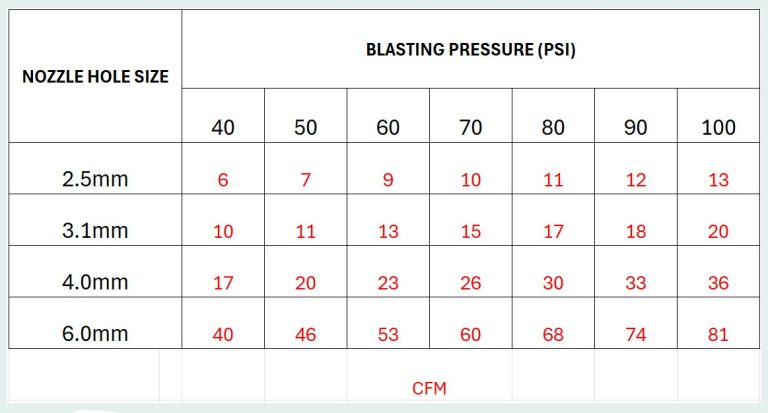

The chart gives you an idea of nozzle Bore Size Vs CFM Vs PSI (blasting pressure) A single phase compressor for example can rarely achieve over 25CFM, unless it's got a dual motor...3 Phase compressor generally give you a significantly higher CFM.
